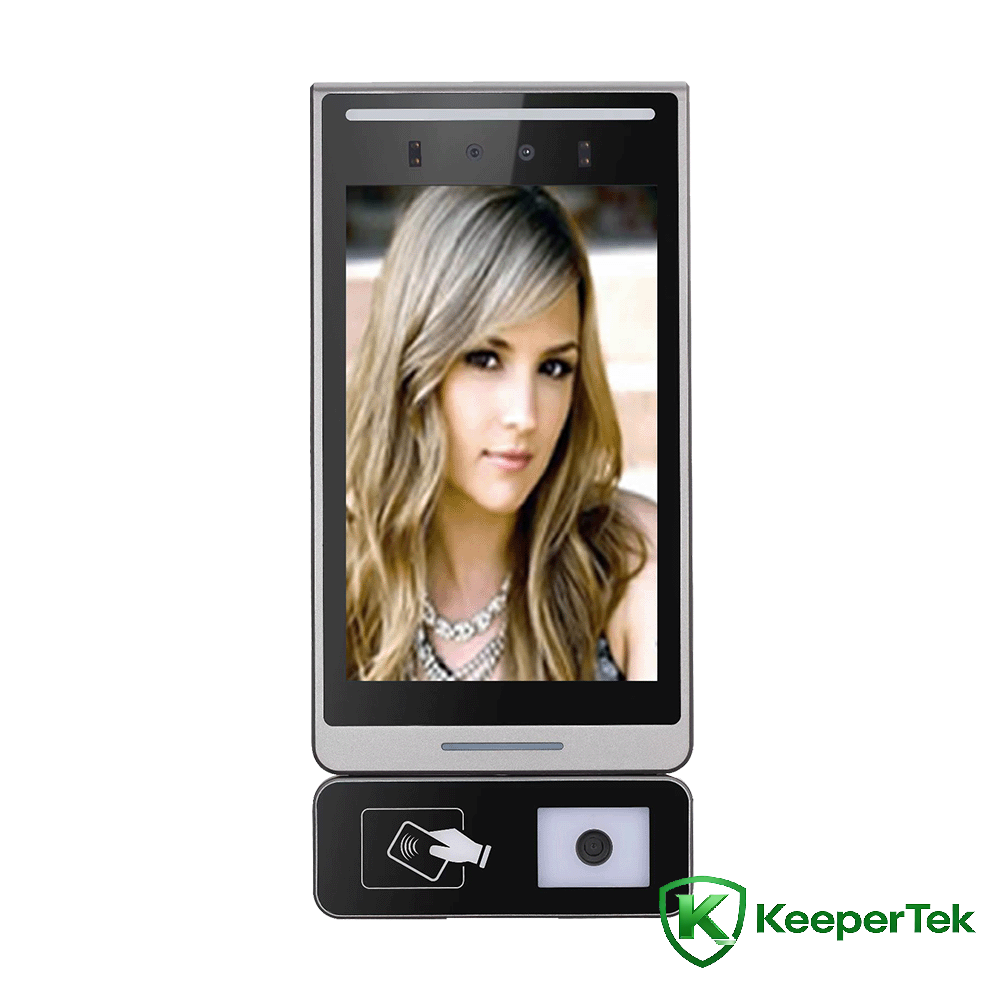

Mashiinka aqoonsiga wajiga

8Qofka inch ah Waji aqoonsado laba-geesood All-in-one mashiinka dharbaaxa code KT- FR015

Xuduudaha farsamada

Processor: Dual-core ARM Cortex-A7 iyo RISC-V MCU

Nidaamka hawlgalka: Nidaamka hawlgalka Linux

Kaydinta: 1GB RAM + 8GB eMMC

Kamarada: Binocular, 2.1 milyan oo pixels wax ku ool ah, 1920*1080

Qalabka sawirka: 1/2.8" Horumarka Scan CMOS

Lens: 4.5mm dhererka focal

Module luminta kaadhka: mifare one (M1), S50, S70, NTAG2xx iyo 13.56MHz kaadhadhka band ee soo noqnoqda, TK, EM iyo taxane kale oo ah 125KHz kaarka band band (oo ay taageerto IC/ID)

Qaabka koodka QR: 640 (hore)

Ku-hadalka: Waxa ku jira dib-u-ciyaarista codka waa la beddeli karaa

Dhererka aqoonsiga: 1.2 ~ 2.3 mitir, xagal la hagaajin karo

Fogaanta aqoonsiga: 0.5 ~ 1.5 mitir, doorsoome waxay kuxirantahay muraayada

Xagasha wejiga: 30 darajo bidix iyo midig, 30 darajo kor iyo hoos

Waqtiga aqoonsiga: in ka yar 0.3 sekan

Awoodda diiwaanka aqoonsiga: 69000

Awoodda wejiga: 24000

Galinta awooda: DC12V/2A

Isku xirka shabakada: 1 RJ45 10M / 100M deked Ethernet adaptive

Wiegand interface: 1 Wiegand interface wax soo saarka, 1 Wiegand interface gelin

Qiimaha beddelka: 1 beddelka qiimaha wax soo saarka

Interface isgaarsiinta: 1 RS485 isgaarsiinta interface

USB interface: 1 USB interface

Kamarada: kamarada binocular, lens la habeeyey, iftiin muuqda iyo infrared-ku dhow, waxay taageertaa ogaanshaha jidhka nool

pixels wax ku ool ah: 2.1 milyan oo pixels wax ku ool ah, 1920*1080

Saamiga calaamad-ilaa-sanqa: ≥50db (AGC OFF)

Kala duwanaansho firfircoon oo ballaadhan: 120db, ISP algorithm qayb ahaan soo-gaadhista wejiga

Codaynta fiidiyooga: H.265 codaynta xogta ugu weyn/H.264 BP/MP/HP codaynta/MJPEG codaynta

Heerkulka shaqada: -20℃-60℃

Qoyaanka shaqada: 0 ~ 90% qoyaan qaraabo ah, ma laha uumi

Awoodda qalabka: 20W (MAX)

Heerka buufinta milixda: heerka Rp6

ESD: la xidhiidh ± 6KV, hawada ± 8KV

Korontada: DC12V/2A

Heerka ilaalinta: IP66

Tilmaamaha Shaashadda: 8-inch IPS oo qeexid sare leh, xallinta 1280*800

Cabbirka qalabka: 295.76 (dhererka) * 140.2 (ballac) * 24 ( dhumucdiisuna) mm

Astaamaha

Taageer ogaanshaha jirka ee binocular nool

Waxay taageertaa dabagalka wejiga iyo soo bandhigida dadka ku socda jawiga iftiinka dambe ee xooggan

Algorithm aqoonsiga wejiga gaarka ah, si sax ah u aqoonsada wejiyada, wakhtiga aqoonsiga wejigu wuu ka yar yahay 0.3s

Ku-dhismay CPU-ga gudaha

Isticmaalka nidaamka hawlgalka LINUX, nidaamku waa mid deggan

Waqtiga socodka celceliska ee u dhexeeya guuldarrooyinka MTBF – 50000h

Waxay taageertaa ilaa 24,000 maktabadaha isbarbardhigga wejiga iyo 69,000 diiwaannada aqoonsiga

Qandaraasyada interface qani ah, taageeraya TCP/IP, UDP, RTP, RTSP, RTCP, HTTP, DNS, DDNS, DHCP, SMTP, UPNP, borotokoolka MQTT ee hoos yimaada Windows/Linux iyo aaladaha kale

Heerkulka shaqada: -20℃-60℃

Jir aad u khafiif ah, naqshad warshadeed oo heersare ah

Interfaces hardware qani ah (I/O, USB2.0, WG26, WG34, RJ45, RS485)

8-inji IPS muuqaal HD ah oo si buuxda loo daawado, wax ceeb ah ama dib u dhac ah oo muuqaal ah ma leh

Faa'iidada tooska ah iyo dheelitirka cad ee tooska ah ayaa u oggolaanaya midabka dhabta ah ee sawirka in si dabiici ah loo soo celiyo

3D-yaraynta qaylada iyo tignoolajiyada galitaanka ceeryaamo ayaa ka dhigaya la socodka sawirada iftiinka hooseeya mid cad oo faahfaahsan

Taageer qayb ka mid ah xannibaadda aagga fiidiyowga

Taageer codaynta ROI

Dheelitir toos ah oo cad, hadhaaga cad gacanta ayaa diyaar ah

Taageerada dhimista 2D qaylada iyo dhimista qaylada 3D

Waxay taageertaa dhalaalka fiidyaha, isbarbardhigga, midabka, saturation, iyo hagaajinta gamma
