Mashiinka aqoonsiga wajiga

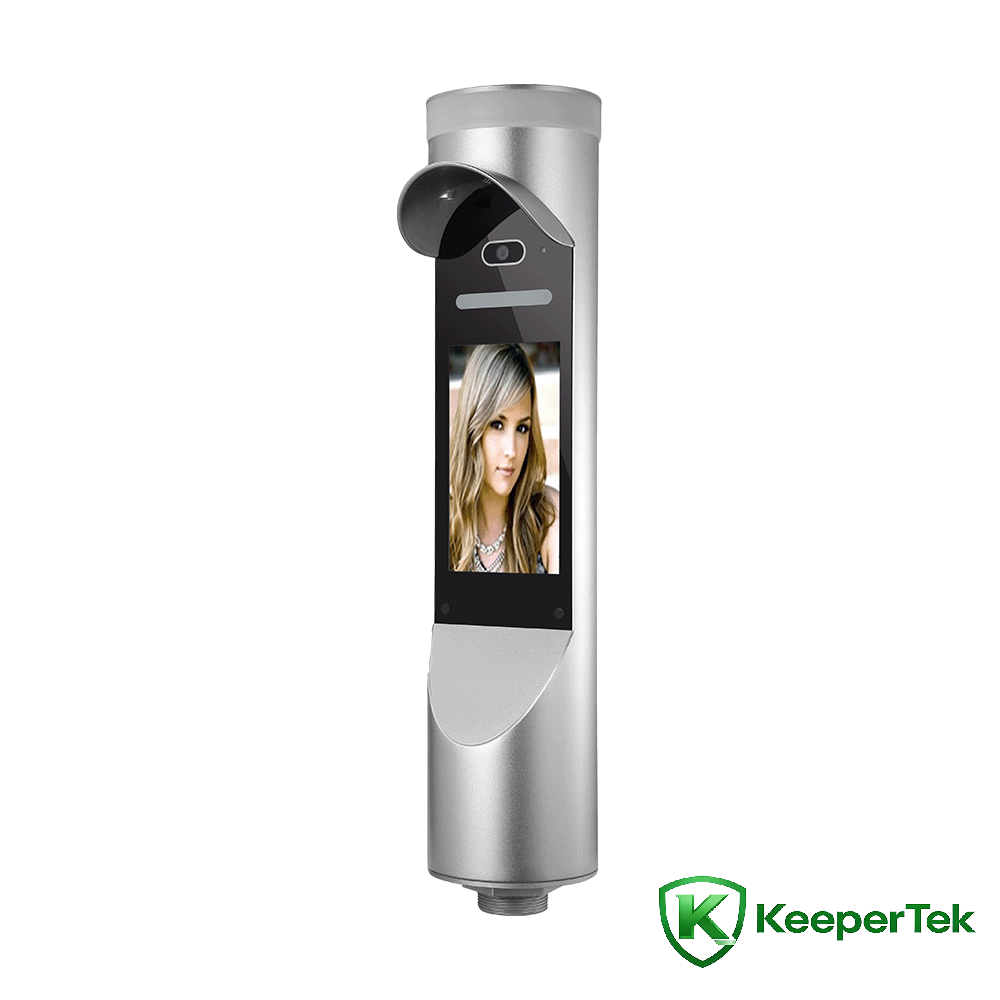

7qof cylindrical ah Waji Aqoonsiga dhammaan-in-midka mashiinka KT- FR014

Xuduudaha farsamada

Processor: Dual-Core ARM Cortex-A7, @1.0GHz

Nidaamka hawlgalka: Nidaamka hawlgalka Linux

Kaydinta: 8GB EMMC

Kamarada: Binocular, 2.1 milyan oo pixels wax ku ool ah, 1920*1080

Qalabka sawirka: 1/2.8" Horumarka Scan CMOS

Lens: 6mm

Hadafka: heerka caadiga ah, waxa ku jira dib u soo celinta codka waa la beddeli karaa

Dhererka aqoonsiga: 1.2 ~ 2.2 mitir, xagal la hagaajin karo

Fogaanta aqoonsiga: 0.3 ~ 1.5 mitir, doorsoomayaal ku xidhan muraayada

Xagasha wejiga: 30 darajo bidix iyo midig, 30 darajo kor iyo hoos

Waqtiga aqoonsiga: in ka yar 0.5 sekan

Awoodda wejiga: 20,000

Awoodda kaydinta: 60,000 diiwaannada sawir-qaadista

Isku-xidhka isgaadhsiinta: RJ45 deked Ethernet adaptive (waxay taageeri kartaa WiFi la habeeyey)

Xakamaynta interface: wax soo saarka beddelka

Wiegand interface: 1 Wiegand interface input, 1 Wiegand interface saarka

USB interface: 1 USB interface sida qalab

Interface isgaarsiinta: 1 RS485 isgaarsiinta interface

Kamarada: Kamarada binocular, iftiin muuqda, waxay taageertaa ogaanshaha jirka ee nool

pixels wax ku ool ah: 2.1 milyan oo pixels wax ku ool ah, 1920*1080

Iftiinka ugu yar: midabka 0.01Lux @F1.2 (ICR); madow iyo caddaan 0.001Lux @F1.2 (ICR)

Saamiga calaamad-ilaa-sanqa: ≥50db (AGC OFF)

Xallinta shaashadda: 480*800

Heerkulka shaqada: -30℃ - +60℃

Qoyaanka shaqada: 0 ~ 90% qoyaan qaraabo ah, ma laha uumi

Awoodda qalabka: 10W (MAX)

Heerka buufinta milixda: Rp6 ama ka sareeya

Antistatic: la xidhiidh ± 6KV, hawada ± 8KV

Korontada: DC12V/2A

Dhexroor dalool maroojin: 47mm

Heerka ka-hortagga rabshadaha: IK06

Heerka ilaalinta: IP65

Tilmaamaha Shaashadda: 7-inji muuqaal sare oo RGB ah

Cabbirka qalabka: 519 (dhererka) * 118 (ballac) * 118 ( dhumucdiisuna) mm

Astaamaha

Taageer ogaanshaha jirka ee binocular nool

Waxay taageertaa dabagalka wejiga iyo soo bandhigida dadka ku socda jawiga iftiinka dambe ee xooggan

Algorithm ee aqoonsiga wejiga gaarka ah, si sax ah u aqoonsada wejiyada, wakhtiga aqoonsiga wejiga ayaa ka yar 0.5s

Ku-dhismay CPU-ga gudaha

Isticmaalka nidaamka hawlgalka LINUX, nidaamku waa mid deggan

Waqtiga socodka celceliska ee u dhexeeya guuldarrooyinka MTBF – 50000h

Waxay taageertaa ilaa 20,000+ maktabadaha isbarbardhigga wejiga iyo 60,000 diiwaannada aqoonsiga

Qandaraasyada interface qani ah, taageeraya TCP/IP, UDP, RTP, RTSP, RTCP, HTTP, DNS, DDNS, DHCP, SMTP, UPNP, borotokoolka MQTT ee hoos yimaada Windows/Linux iyo aaladaha kale

Heerkulka shaqada: -30℃-60℃

IP66 aan biyuhu lahayn iyo boodh celin

Taageer dareenka iftiinka

Interfaces hardware qani ah (I/O, WG26, WG34, RJ45, USB, RS485)

7-inji muuqaal sare oo RGB ah, wax xoqin ama dib u dhac ku ma jiro sawirada
