Mashiinka aqoonsiga wajiga

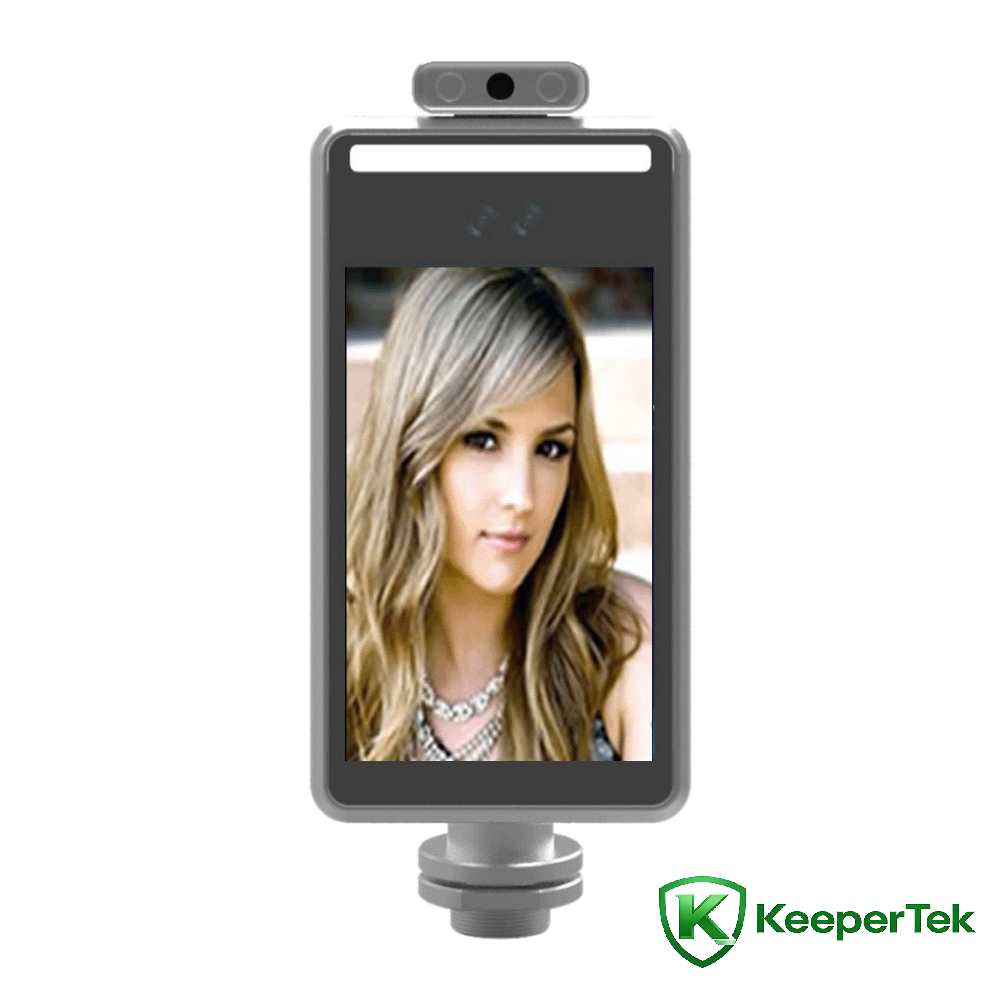

8inji dadka aqoonsiga waji Heerkulbeegga All-in-one mashiinka KT-FR008

Xuduudaha farsamada

Processor: Dual-core ARM Cortex-A7

Nidaamka hawlgalka: Nidaamka hawlgalka ee Linux

Kaydinta: 1GB RAM + 8GB eMMC

Xagasha daawashada: xagal daawashada toosan: 30°； Xagasha daawashada tooska ah: 30°

Qalabka sawirka: 1/2.8" Horumarka Scan CMOS

Lens: 6mm

Qaabka luminta kaadhka (ikhtiyaarka): 13.56MHz, wuxuu taageeraa Mifare S50, kaararka S70, kaararka ultralinght, kaararka NTAG, DESFire D21, D41, D81, kaararka CPU ee aan lala xiriirin

4G module (ikhtiyaar): wuxuu taageeraa LTE-FDD, LTE-TDD, DC-HSPA+, WCDMA, EDGE, GPRS iyo halbeegyada shabakadaha kale, oo leh heerka ugu hooseeya ee 160Mbps iyo ugu badnaan heerka kor u kaca ee 60Mbps

moduleka Wifi (ikhtiyaar): 2.4GHz band soo noqnoqda, IEEE802 b/g/n borotokool； 5GHz soo noqnoqda, IEEE802 a/n/ac borotokool

Hadafka: heerka caadiga ah, waxa ku jira dib u soo celinta codka waa la beddeli karaa

Bey'adda cabbirka: 16℃-40℃, wax dabayl ah oo gudaha ah (eeg qoraalada wixii faahfaahin ah)

Muraayada cabbiraadda heerkulka: muraayadaha asalka ah ee laga keenay Yurub

Nooca dareemayaasha: Dareemaha heerka caafimaad ee laga keenay Yurub

Saxnaanta cabbirka: ± 0.3℃

Xalinta heerkulka: 0.1℃

Masaafada cabbirka heerkulka: ≤30cm

Waqtiga jawaabta: 300ms

Dhererka aqoonsiga: 1.2 ~ 2.2 mitir, xagal la hagaajin karo

Fogaanta aqoonsiga: 0.3 ~ 1.5 mitir, doorsoomayaal ku xidhan muraayada

Waqtiga aqoonsiga: in ka yar 0.3 sekan

Awoodda duubista: 80,000 diiwaannada sawir-qaadista

Awoodda wejiga: 30,000

Iftiiminta shaashadda: ≥400 cd/m2

Wax soo saarka beddelka: 1 wax soo saarka beddelka, dekedaha kale ee GPIO waa la beddeli karaa

USB interface: 1 USB interface sida qalab

Isku xirka shabakada: 1 RJ45 10M/100M deked Ethernet adaptive, deked shabakad Gigabit ah oo la beddeli karo

Wiegand interface: 1 Wiegand interface wax soo saarka, 1 Wiegand interface gelin

Interface isgaarsiinta: 1 RS485 interface

Kamarada: Kamarada binocular, iftiinka muuqda iyo infrared u dhow, waxay taageertaa ogaanshaha jirka ee nool

pixels wax ku ool ah: 2.1 milyan oo pixels wax ku ool ah, 1920*1080

Iftiinka ugu yar: midabka 0.01Lux @F1.2 (ICR); madow iyo caddaan 0.001Lux @F1.2 (ICR)

Saamiga calaamad-ilaa-sanqa: ≥50db (AGC OFF)

Kala duwanaansho firfircoon oo ballaadhan: 120db, ISP algorithm qayb ahaan soo-gaadhista wejiga

Codaynta fiidiyooga: H.265 codaynta xogta ugu weyn/H.264 BP/MP/HP codaynta/MJPEG codaynta

Heerkulka shaqada: -30℃ - +60℃ (heerkulka cabbiraadda heerkulka deegaanka: +16℃ - +40℃)

Qoyaanka shaqada: 0 ~ 90% qoyaan qaraabo ah, ma laha uumi

Heerka buufinta milixda: Rp6 ama ka sareeya

Antistatic: la xidhiidh ± 6KV, hawada ± 8KV

Korontada: DC12V/2A

Heerka ilaalinta: IP42

Awoodda qalabka: 20W (MAX)

Cabbirka qalabka: 272 (dhererka) * 136 (ballac) * 34 ( dhumucdiisuna) mm

Astaamaha

Taageer ogaanshaha jirka ee binocular nool

Waxay taageertaa daba-galka wejiga iyo soo-gaadhista dadka ku socda jawiga iftiinka dambe ee xooggan

Algorithm aqoonsiga wejiga gaarka ah, si sax ah u aqoonsada wejiyada, wakhtiga aqoonsiga wejigu wuu ka yar yahay 0.3s

Isticmaalka nidaamka hawlgalka LINUX, nidaamku waa mid deggan

H.265 codaynta qaab socodka fiidiyowga ayaa si toos ah ugu xidhan NVR iyo aaladaha kale ee kaydinta iyada oo loo marayo borotokoolka ONVIF iyo nidaamka GB28181.

Waxay taageertaa kaydinta maxaliga ah ee kaarka TF, oo leh kaydinta sawirada si joogto ah 1 sano iyo fiidyowyo 1 bil ama ka badan (waxay kuxirantahay awooda kaadhka ikhtiyaariga ah ee TF)

Waqtiga socodka celceliska ee u dhexeeya guuldarrooyinka MTBF – 50000h

Waxay taageertaa 30,000+ maktabadaha isbarbardhigga wejiga iyo 80,000 diiwaannada aqoonsiga

Waxay taageertaa cabbiraadda heerkulka jidhka meel u dhow iyo qaylo-dhaan heerkul sare ah

Taageerida xidhitaanka borotokoolka interface xogta heerkulka

Qandaraasyada interface qani ah, taageeraya TCP/IP, UDP, RTP, RTSP, RTCP, HTTP, DNS, DDNS, DHCP, SMTP, UPNP, borotokoolka MQTT ee hoos yimaada Windows/Linux iyo aaladaha kale

Heerkulka shaqada: -30℃-60℃ (heerkulka cabbiraadda heerkulka deegaanka: +16℃- +40℃)

IP42 aan biyuhu lahayn iyo boodh celin

Interfaces hardware qani ah (I/O, WG26, WG34, RJ45, USB, RS485)

8-inji IPS muuqaal HD ah oo si buuxda loo daawado, wax ceeb ah ama dib u dhac ah oo muuqaal ah ma leh

Faa'iidada tooska ah iyo dheelitirka cad ee tooska ah ayaa u oggolaanaya midabka dhabta ah ee sawirka in si dabiici ah loo soo celiyo

Dareemaha heerka iftiinka madow ee ku dhex dhisan ee u heellan ilaalinta fiidyowga, aqoonsiga iftiinka hoose ee saxda ah

3D-yaraynta qaylada iyo tignoolajiyada galitaanka ceeryaamo ayaa ka dhigaya la socodka sawirada iftiinka hooseeya mid cad oo faahfaahsan

Taageer qayb ka mid ah xannibaadda aagga fiidiyowga

Taageer codaynta ROI

Dheelitir toos ah oo cad, hadhaaga cad gacanta ayaa diyaar ah

Taageerada dhimista 2D qaylada iyo dhimista qaylada 3D

Waxay taageertaa dhalaalka fiidyaha, isbarbardhigga, midabka, saturation, iyo hagaajinta gamma

Taageerada dejinta wakhtiga ugu badan ee tooska ah

Waxay taageertaa soo-gaadhista garaadka iyo inay wajahdo hagaajinta garaadka
