Mashiinka aqoonsiga wajiga

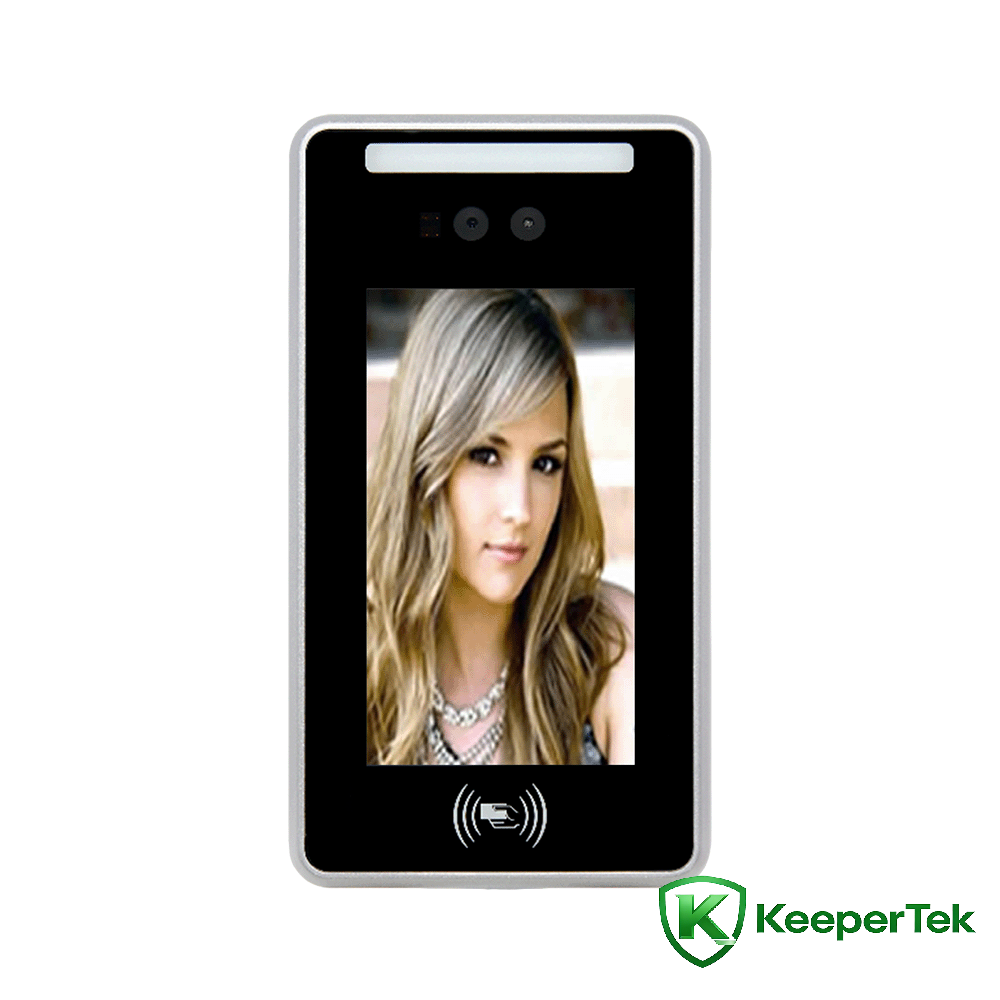

7inji dadka Kaadhka aqoonsiga wejiga oo ku dhufanaya mishiinka-ku-jirka ah KT- FR007

Xuduudaha farsamada

Processor: Dual-Core ARM Cortex-A7, @1.0GHz

Nidaamka hawlgalka: Nidaamka hawlgalka Linux

Kaydinta: 8GB EMMC

Kamarada: Binocular, 2.1 milyan oo pixels wax ku ool ah, 1920*1080

Qalabka sawirka: 1/2.8" Horumarka Scan CMOS

Lens: 6mm

Qaabka luqashada kaarka: 13.56MHz, wuxuu taageeraa Mifare S50, kaararka S70, kaararka ultralinght, kaararka NTAG, DESFire D21, D41, D81, kaararka CPU ee aan lala xiriirin

Module WIFI: IEEE 802.11b/g/n standard, wuxuu taageeraa 2.4GHz band soo noqnoqda, xawaaruhu 1Mbps-150Mbps

Qaabka Bluetooth: 8DPSK, π/4DQPSK, GFSK, xawaaruhu waa 1Mbps-2, 3Mbps

Hadafka: heerka caadiga ah, waxa ku jira dib u soo celinta codka waa la beddeli karaa

Dhererka aqoonsiga: 1.2 ~ 2.2 mitir, xagal la hagaajin karo

Fogaanta aqoonsiga: 0.5 ~ 1.5 mitir, doorsoome waxay kuxirantahay muraayada

Xagasha wejiga: 30 darajo bidix iyo midig, 30 darajo kor iyo hoos

Waqtiga aqoonsiga: in ka yar 0.5 sekan

Awoodda kaydinta: 60,000 diiwaannada sawir-qaadista

Awoodda wejiga: 20,000

Noocyada kaadhka ee la daabici karo: 13.56Mhz, lambarka taxan ee kaadhka aqoonsiga, Mifare, NFC

Wax soo saarka beddelka: 1 wax soo saarka beddelka, dekedaha kale ee GPIO waa la beddeli karaa

USB interface: 1 USB interface sida qalab

Isku xirka shabakada: 1 RJ45 10M/100M deked Ethernet adaptive, deked shabakad Gigabit ah oo la beddeli karo

Wiegand interface: 1 Wiegand interface wax soo saarka, 1 Wiegand interface gelin

Interface isgaarsiinta: 1 RS485 interface

Kamarada: Kamarada binocular, iftiinka muuqda iyo infrared u dhow, waxay taageertaa ogaanshaha jirka ee nool

pixels wax ku ool ah: 2.1 milyan oo pixels wax ku ool ah, 1920*1080

Iftiinka ugu yar: midabka 0.01Lux @F1.2 (ICR); madow iyo caddaan 0.001Lux @F1.2 (ICR)

Saamiga calaamad-ilaa-sanqa: ≥50db (AGC OFF)

Heerkulka shaqada: -30℃ - +60℃

Qoyaanka shaqada: 0 ~ 90% qoyaan qaraabo ah, ma laha uumi

Awoodda qalabka: 10W (MAX)

Heerka buufinta milixda: Rp6 ama ka sareeya

Antistatic: la xidhiidh ± 6KV, hawada ± 8KV

Korontada: DC12V/2A

Heerka ka-hortagga rabshadaha: IK06

Heerka ilaalinta: IP66

Tilmaamaha Shaashadda: Shaashadda IPS ee 7-inji-sare ah

Cabbirka qalabka: 252 (dhererka) * 136 (ballac) * 26 ( dhumucdiisuna) mm

Astaamaha

Taageer ogaanshaha jirka ee binocular nool

Waxay taageertaa dabagalka wejiga iyo soo bandhigida dadka ku socda jawiga iftiinka dambe ee xooggan

Algorithm ee aqoonsiga wejiga gaarka ah, si sax ah u aqoonsada wejiyada, wakhtiga aqoonsiga wejiga ayaa ka yar 0.5s

Ku-dhismay CPU-ga gudaha

Isticmaalka nidaamka hawlgalka LINUX, nidaamku waa mid deggan

Waqtiga socodka celceliska ee u dhexeeya guuldarrooyinka MTBF – 50000h

Waxay taageertaa ilaa 20,000+ maktabadaha isbarbardhigga wejiga iyo 60,000 diiwaannada aqoonsiga

Qandaraasyada interface qani ah, taageeraya TCP/IP, UDP, RTP, RTSP, RTCP, HTTP, DNS, DDNS, DHCP, SMTP, UPNP, borotokoolka MQTT ee hoos yimaada Windows/Linux iyo aaladaha kale

Heerkulka shaqada: -30℃-60℃

IP66 aan biyuhu lahayn iyo boodh celin

Martigeliyaha ku dhex dhisan kaarka IC-dabaqista

Interfaces hardware qani ah (I/O, WG26, WG34, RJ45, USB, RS485)

7-inji IPS muuqaal HD ah oo si buuxda loo daawado, wax ceeb ah ama dib u dhac ku ma jiro sawirada
