Mashiinka aqoonsiga wajiga

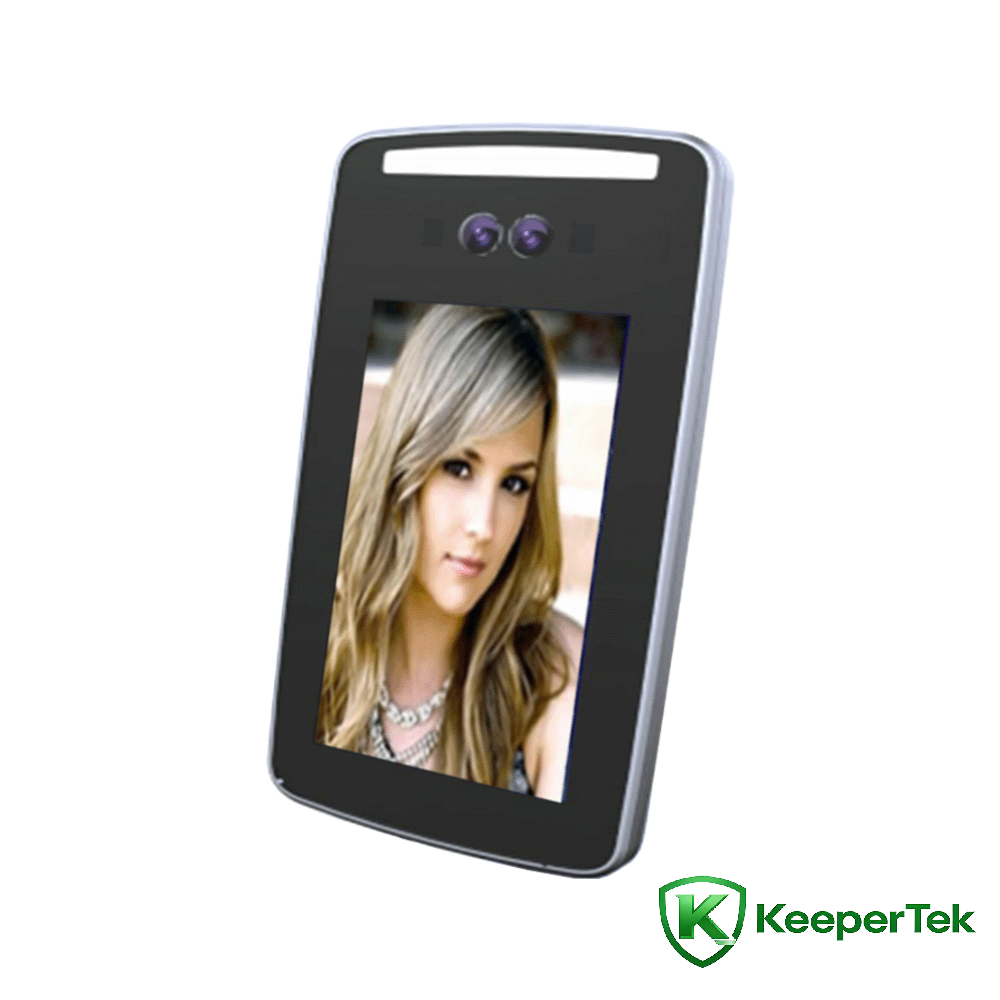

7inji dadka Aqoonsiga wejiga oo dhan-in-mid mashiinka KT- FR005

Xuduudaha farsamada

Processor: Dual-core processor + 1G memory + 16G EMMC

Nidaamka hawlgalka: Nidaamka hawlgalka Linux

Kaydinta: Taageer kaydinta kaadhka TF

Kamarada: Binocular, 2.1 milyan oo pixels wax ku ool ah, 1920*1080

Qalabka sawirka: 1/2.8" Horumarka Scan CMOS

Lens: 6mm

Hadafka: heerka caadiga ah, waxa ku jira dib u soo celinta codka waa la beddeli karaa

Dhererka aqoonsiga: 1.2 ~ 2.2 mitir, xagal la hagaajin karo

Fogaanta aqoonsiga: 0.5 ~ 1.5 mitir, doorsoome waxay kuxirantahay muraayada

Xagasha wejiga: 30 darajo bidix iyo midig, 30 darajo kor iyo hoos

Waqtiga aqoonsiga: in ka yar 0.5 sekan

Awoodda wejiga: 20,000

Awoodda kaydinta: 60,000 diiwaannada sawir-qaadista

Wax soo saarka beddelka: 1 wax soo saarka beddelka, dekedaha kale ee GPIO waa la beddeli karaa

Isku xirka shabakada: 1 RJ45 10M/100M deked Ethernet adaptive, deked shabakad Gigabit ah oo la beddeli karo

Wiegand interface: 1 Wiegand interface input, 1 Wiegand interface saarka

USB interface: 1 USB interface sida qalab

Interface isgaarsiinta: 1 RS485 interface

Kamarada: Kamarada binocular, iftiinka muuqda iyo infrared u dhow, waxay taageertaa ogaanshaha jirka ee nool

pixels wax ku ool ah: 2.1 milyan oo pixels wax ku ool ah, 1920*1080

Iftiinka ugu yar: midabka 0.01Lux @F1.2 (ICR); madow iyo caddaan 0.001Lux @F1.2 (ICR)

Saamiga calaamad-ilaa-sanqa: ≥50db (AGC OFF)

Kala duwanaansho firfircoon oo ballaadhan: 100db, ISP algorithm qayb ahaan soo-gaadhista wejiga

Codaynta fiidiyooga: H.265 codaynta xogta ugu weyn/H.264 BP/MP/HP codaynta/MJPEG codaynta

Qaabeynta bogga shabakadda: la taageeray

Casriyeynta fog ee aaladda: la taageeray

Habka geynta: waxay taageertaa shabakada dadweynaha iyo isticmaalka LAN

Heerkulka shaqada: -30℃ - +60℃

Qoyaanka shaqada: 0 ~ 90% qoyaan qaraabo ah, ma laha uumi

Heerka buufinta milixda: Rp6 ama ka sareeya

Antistatic: la xidhiidh ± 6KV, hawada ± 8KV

Korontada: DC12V/2A

Heerka ka-hortagga rabshadaha: IK06

Heerka ilaalinta: IP66

Awoodda aaladda: 14.4W (MAX)

Cabbirka qalabka: 128 (ballac) * 28 ( dhumucdiisuna) * 240 (dherer) mm

Astaamaha

Taageer ogaanshaha jirka ee binocular nool

Waxay taageertaa dabagalka wejiga iyo soo bandhigida dadka ku socda jawiga iftiinka dambe ee xooggan

Algorithm ee aqoonsiga wejiga gaarka ah, si sax ah u aqoonsada wejiyada, wakhtiga aqoonsiga wejiga ayaa ka yar 0.5s

 Ku-dhismay CPU-ga gudaha

Isticmaalka nidaamka hawlgalka LINUX, nidaamku waa mid deggan

Waqtiga socodka celceliska ee u dhexeeya guuldarrooyinka MTBF – 50000h

Waxay taageertaa 20,000 maktabadaha isbarbardhigga wejiga iyo 60,000 diiwaannada aqoonsiga

Hab-maamuuska is dhexgalka qani, taageeraya TCP/IP, UDP, HTTP, DNS, DHCP, borotokoolka MQTT ee hoos yimaada Windows/Linux iyo aaladaha kale · Heerkulka shaqada: -30℃-60℃

IP66 aan biyuhu lahayn iyo boodh celin

 Dareemaha sawir-qaadista ee gudaha ku dhex jira, ayaa si toos ah u hagaajiya buuxinta xoogga iftiinka

Interfaces hardware qani ah (I/O, WG26, WG34, RJ45, RS485)

7-inji IPS muuqaal HD ah oo si buuxda loo daawado, wax ceeb ah ama dib u dhac ku ma jiro sawirada
