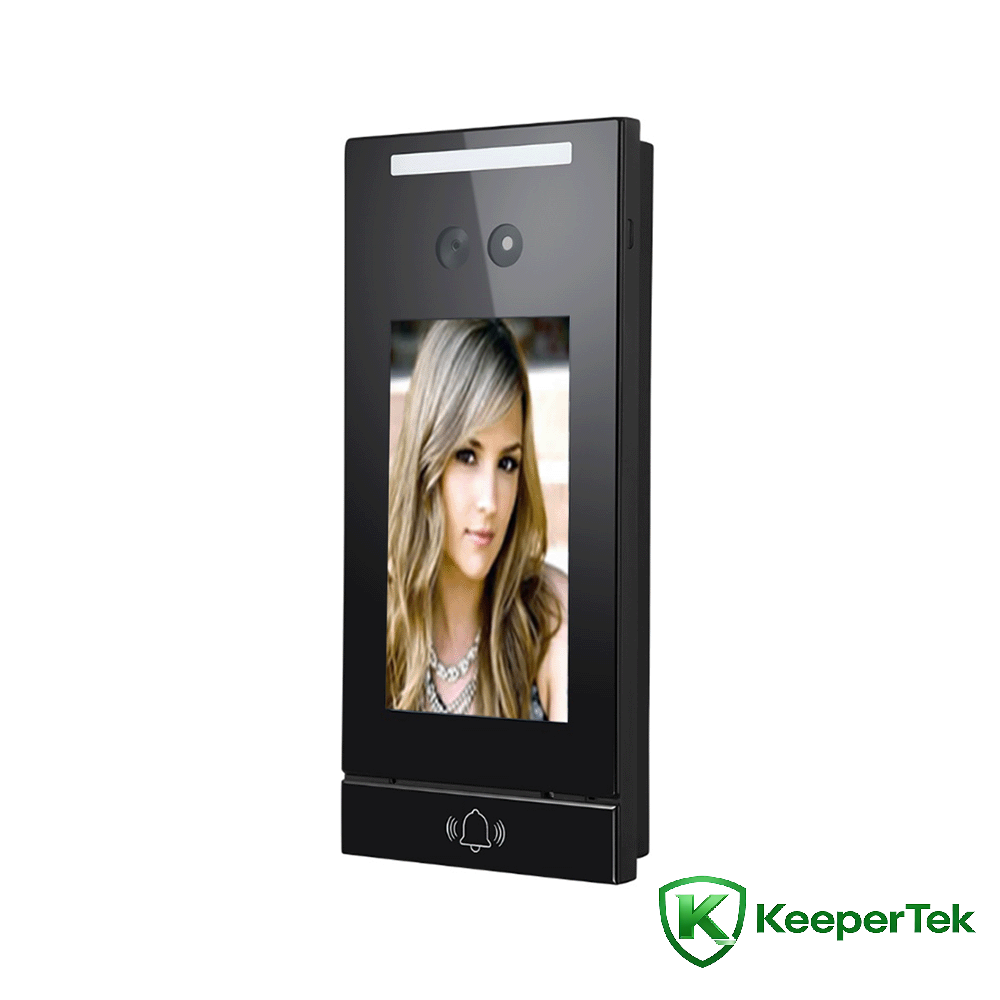

Mashiinka aqoonsiga wajiga

5inji dadka Waji aqoonsado buraash Kaadhka la isku daray mashiinka KT- FR004

Xuduudaha farsamada

processor Processor dual-core gudaha ah + 1G xusuusta + 8G EMMC

nidaamka hawlgalka Nidaamka hawlgalka Linux

kaydinta Taageer kaydinta kaadhka TF (ikhtiyaar)

Kamarada Binocular, 2.1 milyan oo pixels wax ku ool ah, 1920*1080

Qalabka sawirka 1/2.8" Horumarka Scan CMOS

Module kaarka ku xaaq Waxay taageertaa LTE-TDD/LTE-FDD/HSPA+/GSM/GPRS/EDGE heerar kala duwan, waxay taageertaa ilaa 150Mbps heerka soo dejinta, iyo 50Mbps heerka soo dejinta

module Wifi Ikhtiyaar ah, 2.4GHz WiFi SoC chip, isku dhafan IEEE 802.11b/g/n iyo wareegga RF, ugu badnaan 72.2Mbit/s heerka lakabka jireed

ku hadla Habaynta caadiga ah, waxa ku jira dib u soo celinta codka waa la beddeli karaa

Dhererka aqoonsiga 1.2 ~ 2.3 mitir, xagal la hagaajin karo

fogaanta aqoonsiga 0.5-1.5 mitir

xagal wejiga 30 darajo bidix iyo midig, 30 darajo kor iyo hoos

waqtiga aqoonsiga In ka yar 0.5 ilbiriqsi

awoodda kaydinta 80,000 oo diiwaanno sawir qaade ah

awoodda wejiga 10,000 oo xaashi

Noocyada kaadhka ee la dhufsan karo 13.56MHz, waxay taageertaa Mifare S50, kaararka S70, kaararka ultralinght, kaararka NTAG, DESFire D21, D41, D81, kaararka CPU ee aan lala xiriirin

galinta awooda DC12V/2A

interface network 1 RJ45 10M/100M deked Ethernet adaptive ah, deked shabakad Gigabit ah oo la beddeli karo

Wiegand interface 1 Wiegand interface saarka, 1 Wiegand interface gelin

Interface alaarmiga 1 gelinta alaarmiga dabka, 1 soo saarista alaarmiga

Dareemaha albaabka 1 kanaalka gelinta dareenka dareenka

Isku xirka albaabka furan 1 albaab furitaanka interface gelin

albaabka gambaleelka 1 gambaleelka albaabka wax soo saarka

interface quful albaabka 1 kanaalka albaabka quful wax soo saarka

Isku xirka isgaarsiinta 1 kanaalka RS485 isgaarsiineed

kamarad Kamarada binocular, muraayadaha muraayadaha oo dhan, iftiin muuqda iyo infrared-ku dhow, waxay taageertaa ogaanshaha jidhka noolaha

pixels wax ku ool ah 2.1 milyan oo pixels wax ku ool ah, 1920*1080

iftiinka ugu yar Midabka 0.01Lux @F1.2 (ICR); madow iyo caddaan 0.001Lux @F1.2 (ICR)

saamiga signal-to-sanaq ≥50db(AGC OFF)

baaxad weyn oo firfircoon 120db, ISP algorithm qayb ka mid ah soo-gaadhista wejiga

codaynta video H.265 Codaynta Xogta Guud/H.264 BP/MP/HP codaynta/MJPEG

heerkulka shaqada-20℃ - +60℃

Qoyaanka shaqaynaysa 0 ~ 90% qoyaan qaraabo ah, ma jiro uumi

Awoodda qalabka 15W(MAX)

Heerka buufinta milixda Rp heerka 6 iyo wixii ka sareeya

antistatic La xidhiidh ± 6KV, hawada ± 8KV

ku shaqeeya DC12V/2A

Heerka ilaalinta IP42

Tilmaamaha shaashadda Shaashadda IPS ee 5-inji-sare ah

Cabbirka qalabka 205 (dhererka) * 95 (ballac) * 24.5 (dhuudhka) mm

Astaamaha

Taageer ogaanshaha jirka ee binocular nool

Waxay taageertaa daba-galka wejiga iyo soo-gaadhista dadka ku socda jawiga iftiinka dambe ee xooggan

Algorithm ee aqoonsiga wejiga gaarka ah, si sax ah u aqoonsada wejiyada, wakhtiga aqoonsiga wejiga ayaa ka yar 0.5s

Ku-dhismay CPU-ga gudaha

Isticmaalka nidaamka hawlgalka LINUX, nidaamku waa mid deggan

H.265 codaynta qaab socodka fiidiyowga ayaa si toos ah ugu xidhan NVR iyo aaladaha kale ee kaydinta iyada oo loo marayo borotokoolka ONVIF iyo nidaamka GB28181.

Waxay taageertaa kaydinta maxaliga ah ee kaarka TF, oo leh kaydinta sawirada si joogto ah 1 sano iyo fiidyowyo 1 bil ama ka badan (waxay kuxirantahay awooda kaadhka ikhtiyaariga ah ee TF)

Waqtiga socodka celceliska ee u dhexeeya guuldarrooyinka MTBF – 50000h

Waxay taageertaa 10,000+ maktabadaha isbarbardhigga wejiga iyo 80,000 diiwaannada aqoonsiga

Qandaraasyada interface qani ah, taageeraya TCP/IP, UDP, RTP, RTSP, RTCP, HTTP, DNS, DDNS, DHCP, SMTP, UPNP, borotokoolka MQTT ee hoos yimaada Windows/Linux iyo aaladaha kale

Heerkulka shaqada: -20℃- +60℃

Gudaha IP42 biyuhu iyo boodhka celinaya

Taageer alaarmiga ka-hortagga faragelinta

Martigeliyaha ku dhex dhisan IC kaarka akhristaha

Waxay taageertaa gelinta makarafoonka maqalka iyo soo saarista hadalka

Interfaces hardware qani ah (I/O, WG26, WG34, RJ45, dareenka albaabka, gambaleelka albaabka, albaabka furitaanka, alaarmiga, RS485)

5-inji IPS muuqaal HD ah oo si buuxda loo daawado, wax smear ama dib u dhac ah malaha sawirada

Faa'iidada tooska ah iyo dheelitirka cad ee tooska ah ayaa u oggolaanaya midabka dhabta ah ee sawirka in si dabiici ah loo soo celiyo

Dareemaha heerka iftiinka madow ee ku dhex dhisan ee u heellan ilaalinta fiidyowga, aqoonsiga iftiinka hoose ee saxda ah

3D-yaraynta qaylada iyo tignoolajiyada galitaanka ceeryaamo ayaa ka dhigaya la socodka sawirada iftiinka hooseeya mid cad oo faahfaahsan

Taageerada qulqulka koodka iyo I qaabaynta goobaha u dhexeeya

Taageer qayb ka mid ah xannibaadda aagga fiidiyowga

Taageer codaynta ROI

Dheelitir toos ah oo cad, hadhaaga cad gacanta ayaa diyaar ah

Taageerada dejinta wakhtiga ugu badan ee gaadhista

Taageer goobaha la socodka telefoonka gacanta

Taageerada dhimista 2D qaylada iyo dhimista qaylada 3D

Waxay taageertaa wakhtiga duubista wakhtiga jadwalka iyo habaynta habka soo dejinta

Waxay taageertaa dhalaalka fiidyaha, isbarbardhigga, midabka, saturation, iyo hagaajinta gamma

Taageerada dejinta wakhtiga ugu badan ee tooska ah

Waxay taageertaa soo-gaadhista garaadka iyo inay wajahdo hagaajinta garaadka
