Mashiinka aqoonsiga wajiga

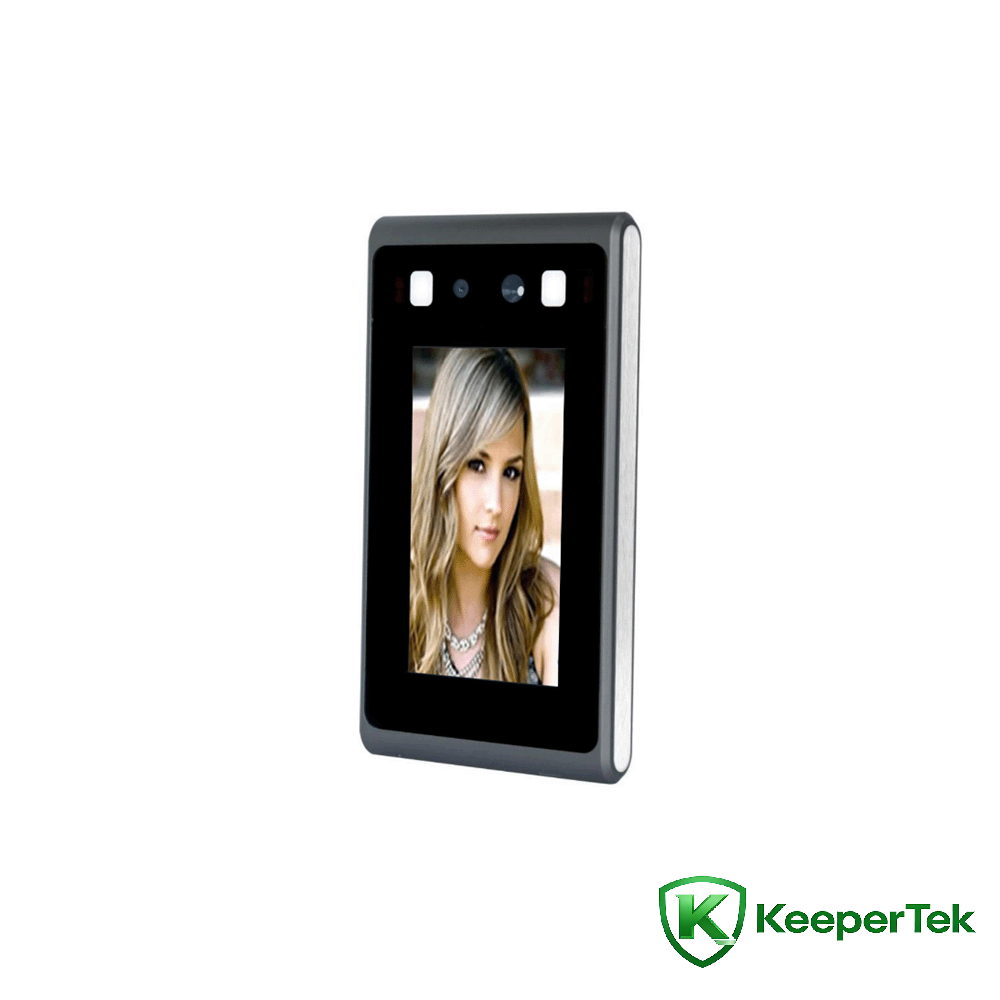

4.3inji dadka Waji aqoonsado buraash Kaadhka la isku daray mashiinka KT- FR002

Xuduudaha farsamada

Processor: Dual-Core ARM Cortex-A7, @1.0GHz

Nidaamka hawlgalka: Nidaamka hawlgalka Linux

Kaydinta: Taageer kaydinta kaadhka TF (ikhtiyaar)

Kamarada: Binocular, 2.1 milyan oo pixels wax ku ool ah, 1920*1080

Qalabka sawirka: 1/2.8" Horumarka Scan CMOS

Lens: 4.5mm

Qaabka luqashada kaadhka: ikhtiyaari, 13.56MHz, nambarka taxan ee kaadhka aqoonsiga, Mifare, NFC

Module wifi: IEEE 802.11b/g/n heerka, waxa uu taageeraa 2.4GHz band soo noqnoqda, xawaaruhu 1Mbps-150Mbps

Shaashadda taabashada: taageero, shaashad taabasho badan leh

Hadafka: heerka caadiga ah, waxa ku jira dib u soo celinta codka waa la beddeli karaa

Dhererka aqoonsiga: 1.2 ~ 2.2 mitir, xagal la hagaajin karo

Fogaanta aqoonsiga: 0.3 ~ 1.5 mitir

Xagasha wejiga: 30 darajo bidix iyo midig, 30 darajo kor iyo hoos

Waqtiga aqoonsiga: in ka yar 0.5 sekan

Awoodda kaydinta: 60,000 diiwaannada sawir-qaadista

Awoodda wejiga: 20,000

Galinta awooda: DC12V/2A

Isku xirka shabakada: 1 RJ45 10M / 100M deked Ethernet adaptive

Wiegand interface: 1 Wiegand interface wax soo saarka, 1 Wiegand interface gelin

Dhexdhexaadiyaha alaarmiga: 1 gelida alaarmiga dabka, 1 soo saarista alaarmiga

Dareemaha albaabka: 1 albaabka interface interface

Interface furitaanka albaabka: 1 albaabka interfiyuuga galitaanka

Doorbell interface: 1 soo saarid interface gambaleelka

Albaabka qufulka: 1 albaab quful wax soo saar

Interface isgaarsiinta: 1 RS485 isgaarsiinta interface

Kamarada: Kamarada binocular, muraayadaha muraayadaha oo dhan, iftiin muuqda iyo infrared-ku dhow, waxay taageertaa ogaanshaha jirka ee nool

pixels wax ku ool ah: 2.1 milyan oo pixels wax ku ool ah, 1920*1080

Iftiinka ugu yar: midabka 0.01Lux @F1.2 (ICR); madow iyo caddaan 0.001Lux @F1.2 (ICR)

Saamiga calaamad-ilaa-sanqa: ≥50db (AGC OFF)

Xallinta shaashadda: 480*272

Heerkulka shaqada: -20℃ - +55℃

Qoyaanka shaqada: 0 ~ 90% qoyaan qaraabo ah, ma laha uumi

Awoodda qalabka: 10W (MAX)

Heerka buufinta milixda: Rp6 ama ka sareeya

Antistatic: la xidhiidh ± 4KV, hawada ± 8KV

Korontada: DC12V/2A

Heerka ilaalinta: IP42

Tilmaamaha shaashadda: 4.3-inji shaashad taabasho badan leh

Cabbirka qalabka: 160 (dhererka) * 88 (ballac) * 17 ( dhumucdiisuna) mm

Astaamaha

Taageer ogaanshaha jirka ee binocular nool

Waxay taageertaa dabagalka wejiga iyo soo bandhigida dadka ku socda jawiga iftiinka dambe ee xooggan

Algorithm ee aqoonsiga wejiga gaarka ah, si sax ah u aqoonsada wejiyada, wakhtiga aqoonsiga wejiga ayaa ka yar 0.5s

Ku-dhismay CPU-ga gudaha

Isticmaalka nidaamka hawlgalka LINUX, nidaamku waa mid deggan

Waqtiga socodka celceliska ee u dhexeeya guuldarrooyinka MTBF – 50000h

Waxay taageertaa ilaa 20,000+ maktabadaha isbarbardhigga wejiga iyo 60,000 diiwaannada aqoonsiga

Heerkulka shaqada: -20℃-55℃

Gudaha IP42 biyuhu iyo boodhka celinaya

Taageer alaarmiga ka-hortagga faragelinta

Waxay taageertaa gelinta makarafoonka maqalka iyo soo saarista hadalka

Interfaces hardware qani ah (I/O, WG26, WG34, RJ45, dareenka albaabka, gambaleelka albaabka, albaabka furitaanka, alaarmiga, RS485)

Shaashad taabasho badan leh oo 4.3-inji ah, wax smear sawir ah ma leh ama dib u dhac
