Mashiinka aqoonsiga wajiga

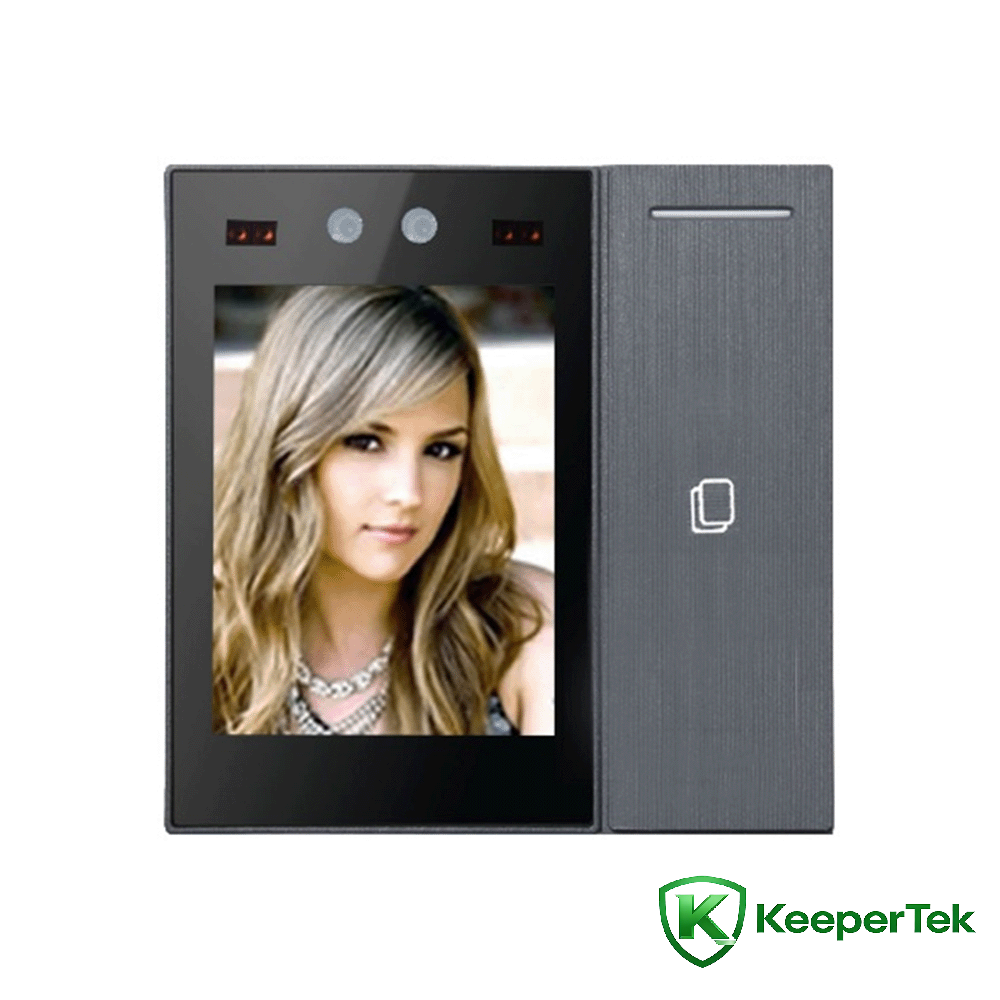

2.8Hal-inch kaarka jiidista wejiga mashiinka KT- FR001

Xuduudaha farsamada

Processor: Processor ARM-waxqabad-sare leh

Nidaamka hawlgalka: Nidaamka hawlgalka Linux

Module kaarka luminta: 13.56MHz aqoonsiga kaadhka soo noqnoqda, wuxuu taageeraa ISO/IEC 14443 TypeA, wuxuu taageeraa ikhtiyaarka aqoonsiga kaadhka aqoonsiga 125KHz

Module WiFi: 2.4GHz/5GHz WiFi SoC chip, isku dhafan IEEE 802.11a/b/g/n baseband iyo RF circuit, heerka ugu hooseeya ee 72.2Mbps

Ethernet: 100Mbps Ethernet port

Shaashada: 2.8-inch LCD

Taabo: Taabasho Karti leh

Fogaanta aqoonsiga: 0.3 ~ 1.5 mitir

Xagasha wejiga: 30 darajo bidix iyo midig, 30 darajo kor iyo hoos

Waqtiga aqoonsiga: in ka yar 0.5 sekan

Awoodda wajiga: 2000

Awoodda diiwaanka: 50000

Galinta awooda: DC12V/1A

Interface network: 1 100M Ethernet dekedda

Wiegand interface: 1 wax soo saarka Wiegand

Dareemaha albaabka: 1 gelinta dareemayaasha albaabka

Albaabka furitaanka: 1 albaabka furitaanka

Interface Relay: 1 soo saarista gudbinta

USB interface: 1 USB2.0 interface (nooca-C)

Kamarada: Kamarada binocular, iftiin muuqda iyo infrared-ku dhow, waxay taageertaa ogaanshaha jirka ee nool

pixels wax ku ool ah: 1 milyan oo pixels oo waxtar leh

Saamiga calaamad-ilaa-sanqa: ≥50db (AGC OFF)

Kala duwanaansho firfircoon oo ballaadhan: 100db, ISP algorithm qayb ahaan soo-gaadhista wejiga

Heerkulka shaqada: -10 ℃ ilaa +50℃

Qoyaanka shaqada: 10% ~ 90% qoyaan qaraabo ah, ma jiro uumi

Awoodda qalabka: 10W (MAX)

Heerka ilaalinta: IP42

Korontada: DC12V/1A

Cabbirka alaabta: 86*86*17 (mm)

Astaamaha

Ku-dhismay CPU-ga gudaha

·Taageer ogaanshaha jirka ee binocular nool

·Heerkulka shaqada: -10℃- +50℃

·Isticmaalka nidaamka hawlgalka LINUX, nidaamku waa mid deggan

·Waqtiga socodka celceliska ee u dhexeeya guuldarrooyinka MTBF – 50000h

·Taageerada xidhiidhka fiilooyinka iyo hawlaha isgaarsiinta WiFi

·Aaladu waxay taageertaa ku xidhka kontoroolka gelitaanka smart iyo madal maaraynta imaanshaha si caadi ah.

·Martigeliyaha waxa uu leeyahay kaarka ku dhex-dhismay kaarka jiidista si ay u taageerto balaadhinta hawlaha dhufashada kaadhka aqoonsiga.

·Qalabku waxa uu leeyahay nalal saddex midab leh oo ku dhex dhisan si loo dedejiyo iyadoo lagu saleynayo natiijooyinka xaqiijinta.

·2.8-inji shaashad taabasho oo awood leh, wax smear ah ma jiro ama dib u dhac

·Qalabku waxa uu taageeraa shaashada taabasho ee dhamaadka-hore iyo galitaanka maxaliga ah si loo maareeyo dhabarka, waydiinta, iyo habaynta qalabka.

·Algorithm ee aqoonsiga wejiga gaarka ah, si sax ah u aqoonsada wejiyada, wakhtiga aqoonsiga wejiga ayaa ka yar 0.5s

·Jidhka qalabku waa mid cufan oo qurux badan, oo si fiican ugu habboon gelitaanka iyo ka bixitaanka xaaladaha xafiisyada iyo qolalka shirarka yaryar.

·Interfaces hardware qani ah (USB2.0, gudbinta, gelinta albaabka furitaanka, gelin dareenka albaabka, Wiegand saarka, iwm.)
