Mashiinka aqoonsiga wajiga

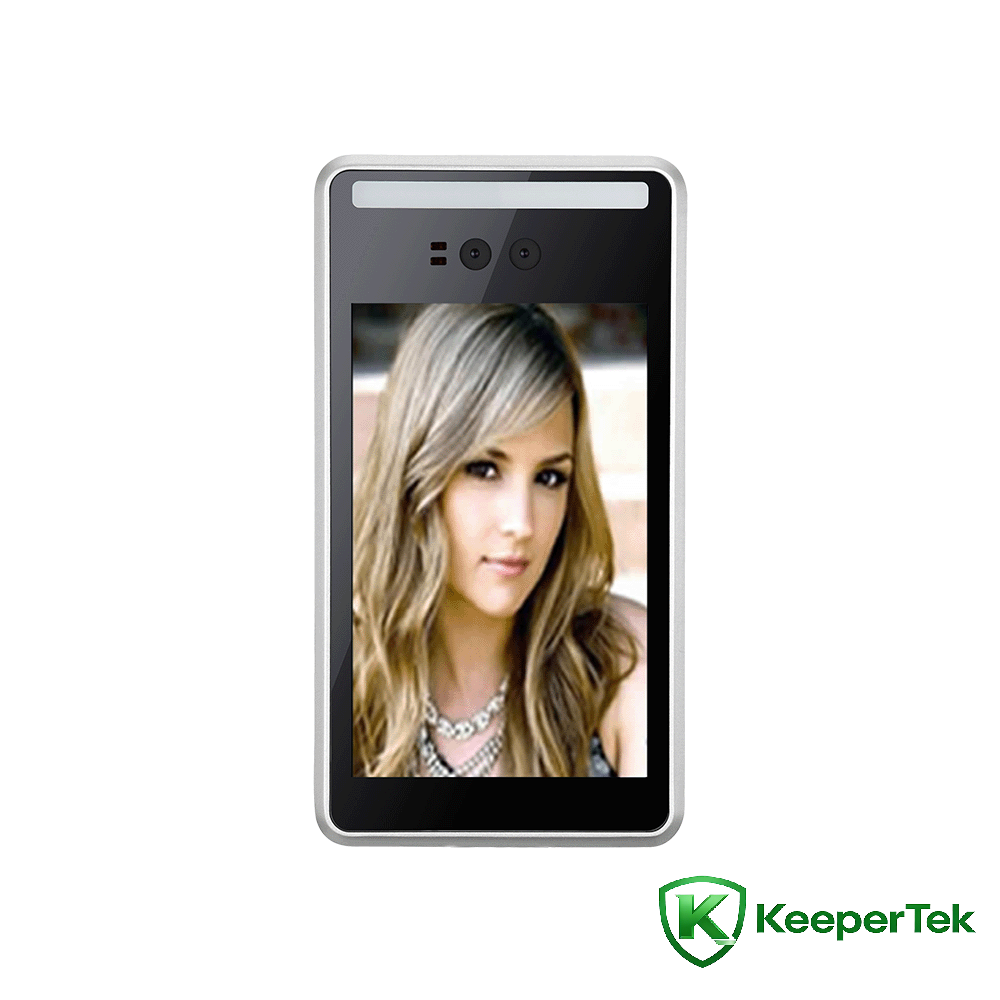

8wejiga inch Aqoonsiga dhammaan-in-midka mashiinka KT-FR012

Xuduudaha farsamada

Processor: Dual-core ARM Cortex-A7

Nidaamka hawlgalka: Nidaamka hawlgalka ee Linux

Kaydinta: 1GB RAM + 8GB eMMC

Xagasha daawashada: xagal daawashada toosan: 30°； Xagasha daawashada tooska ah: 30°

Qalabka sawirka: 1/2.8" Horumarka Scan CMOS

Lens: 6mm

Qaabka luminta kaadhka (ikhtiyaarka): 13.56MHz, wuxuu taageeraa Mifare S50, kaararka S70, kaararka ultralinght, kaararka NTAG, DESFire D21, D41, D81, kaararka CPU ee aan lala xiriirin

4G module (ikhtiyaar): wuxuu taageeraa LTE-FDD, LTE-TDD, DC-HSPA+, WCDMA, EDGE, GPRS iyo halbeegyada shabakadaha kale, oo leh heerka ugu hooseeya ee 160Mbps iyo ugu badnaan heerka kor u kaca ee 60Mbps

moduleka Wifi (ikhtiyaar): 2.4GHz band soo noqnoqda, IEEE802 b/g/n borotokool； 5GHz soo noqnoqda, IEEE802 a/n/ac borotokool

Hadafka: heerka caadiga ah, waxa ku jira dib u soo celinta codka waa la beddeli karaa

Dhererka aqoonsiga: 1.2 ~ 2.2 mitir, xagal la hagaajin karo

Fogaanta aqoonsiga: 0.5 ~ 1.5 mitir, doorsoome waxay kuxirantahay muraayada

Waqtiga aqoonsiga: in ka yar 0.3 sekan

Awoodda duubista: 80,000 diiwaannada sawir-qaadista

Awoodda wejiga: 30,000

Iftiiminta shaashadda: ≥400 cd/m2

Isku xirka shabakada: 1 RJ45 10M/100M deked Ethernet adaptive, deked shabakad Gigabit ah oo la beddeli karo

Wiegand interface: 1 Wiegand interface wax soo saarka, 1 Wiegand interface gelin

Doorka dareenka albaabka: 1 kanaalka albaabka dareenka interface

Albaabka furitaanka albaabka: 1 dariiqa furitaanka albaabka

Interface qufulka albaabka: 1-way albaab quful interface

Isgaadhsiinta isgaadhsiinta: 1 kanaalka 485 isgaadhsiinta isgaadhsiinta

Kamarada: Kamarada binocular, iftiinka muuqda iyo infrared u dhow, waxay taageertaa ogaanshaha jirka ee nool

pixels wax ku ool ah: 2.1 milyan oo pixels wax ku ool ah, 1920*1080

Iftiinka ugu yar: midabka 0.01Lux @F1.2 (ICR); madow iyo caddaan 0.001Lux @F1.2 (ICR)

Saamiga calaamad-ilaa-sanqa: ≥50db (AGC OFF)

Kala duwanaansho firfircoon oo ballaadhan: 120db, ISP algorithm qayb ahaan soo-gaadhista wejiga

Codaynta fiidiyooga: H.265 codaynta xogta ugu weyn/H.264 BP/MP/HP codaynta/MJPEG codaynta

Heerkulka shaqada: -30℃ - +60℃

Qoyaanka shaqada: 0 ~ 90% qoyaan qaraabo ah, ma laha uumi

Heerka buufinta milixda: Rp6 ama ka sareeya

Antistatic: la xidhiidh ± 6KV, hawada ± 8KV

Korontada: DC12V/2A

Heerka ka-hortagga rabshadaha: IK06

Heerka ilaalinta: IP66

Awoodda qalabka: 20W (MAX)

Cabbirka qalabka: 252 (dhererka) * 136 (ballac) * 26 ( dhumucdiisuna) mm

Astaamaha

Taageer ogaanshaha jirka ee binocular nool

Algorithm ee aqoonsiga wejiga tooska ah ee gaarka ah, si sax ah u aqoonsada wejiyada, wakhtiga aqoonsiga wejiga ayaa ka yar 0.3s

Waqtiga socodka celceliska ee u dhexeeya guuldarrooyinka MTBF：50000H

Waxay taageertaa dabagalka wejiga iyo soo bandhigida dadka ku socda jawiga iftiinka dambe ee xooggan

Hab-maamuusyada interface-ka qani ah, taageeraya borotokoolka SDK iyo HTTP ee aalado badan sida Linux/Windows

Isticmaalka nidaamka hawlgalka Linux, xasiloonida nidaamka ayaa ka wanaagsan

Waxay taageertaa 30,000+ maktabadaha isbarbardhigga wejiga iyo 80,000 diiwaannada aqoonsiga

Waxay taageertaa kaydinta balaadhinta kaadhka TF, sawirada si joogto ah ayaa loo kaydin karaa 1 sano, fiidiyowyada si joogto ah ayaa loo kaydin karaa toddobaad ama ka badan

Heerkulka shaqada: -30℃- +60℃

Banaanka IP66 biyuhu celinayaan iyo boodhka celinaya

Qalabku waxa uu taageeraa galitaanka gudaha si loo maareeyo, u waydiiyo, oo loo habeeyo qalabka.

Interfaces hardware qani ah (I/O, WG26, WG34, RJ45, dareenka albaabka, furitaanka albaabka, quful albaabka, RS485)

8-inji IPS muuqaal HD ah oo si buuxda loo daawado, wax ceeb ah ama dib u dhac ah oo muuqaal ah ma leh

Faa'iidada tooska ah iyo dheelitirka cad ee tooska ah ayaa u oggolaanaya midabka dhabta ah ee sawirka in si dabiici ah loo soo celiyo

Dareemaha heerka iftiinka madow ee ku dhex dhisan ee u heellan ilaalinta fiidyowga, aqoonsiga iftiinka hoose ee saxda ah

3D-yaraynta qaylada iyo tignoolajiyada galitaanka ceeryaamo ayaa ka dhigaya la socodka sawirada iftiinka hooseeya mid cad oo faahfaahsan

Taageer qayb ka mid ah xannibaadda aagga fiidiyowga

Taageer codaynta ROI

Dheelitir toos ah oo cad, hadhaaga cad gacanta ayaa diyaar ah

Taageerada dhimista 2D qaylada iyo dhimista qaylada 3D

Waxay taageertaa dhalaalka fiidyaha, isbarbardhigga, midabka, saturation, iyo hagaajinta gamma

Taageerada dejinta wakhtiga ugu badan ee tooska ah

Waxay taageertaa soo-gaadhista garaadka iyo inay wajahdo goobaha kobcinta garaadka
